燃燒器及配件

西門子LAE10

制造商：
產品類型：火焰探測器
產品品類：西門子火焰探測器(SIEMENS)

品牌所屬國：

優惠活動: 優惠折扣7折

折

為什么從千點熱采購：

電話購買
貨到付款
正規代理
保證原裝
價低質優

產品介紹

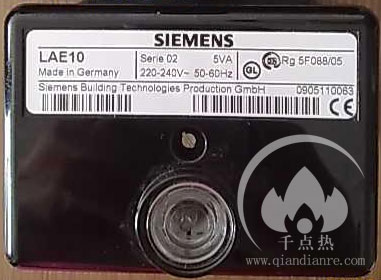

產品資料表 -- 西門子LAE10

shutdown is required every 24 hours. The LAE10 is designed for the supervision of oil flames in connection with selenium photocell detectors RAR... Flame safeguards are used primarily in conjunction with the LEC1 burner control on the following applications:

Dual-supervision of burners: Supervision of the main flame or of the pilot and main flame by two identical or different types of flame detectors
Supervision of forced draught oil / gas burners: Supervision of the flame with different types of detectors, depending on the operating mode
Multi-flame supervision: Plants with several burners whose flames must be supervised individually by one or several detectors, whose startup and supervision, however, should or must be carried out centrally and simultaneously by only one burner control
The flame safeguards can also be used in connection with other types of burner controls provided the given combination and selected circuitry do not impair the burner control’s safety functions
The flame safeguards are also used as flame indication units in combustion plant with manual startup

技術參數

主要參數

主電壓	AC220V -15%...AC240V +10%
主電壓	AC100V -15%...AC1100V +10%
主頻率	50...60Hz ±6%
外部保險絲	10A
功率	4.5VA
端口額定電流	2A
保護等級	IP40
重量（不含底座）	305g

環境條件

運輸環境	IEC 60 721-3-2
內部條件	class 2K2
機械條件	class 2M2
溫度范圍	-20...+60ºC
濕度	<95%
運行環境	IEC 60 721-3-3
內部條件	class 3K5
機械條件	class 3M2
溫度范圍	-20...+60ºC
濕度	<95%
不得進水
